Minebea ARTE Imperial Rod Ends

$52.96
(Exc. 8% Sales Tax - GA only)
1/4x5/16
5/16x5/16
3/8x3/8
7/16x7/16
1/2x1/2
5/8x5/8
3/4x3/4
RH
LH
In stock, immediate dispatch
+
Part Number
ART4E(R)
Minebea
Information

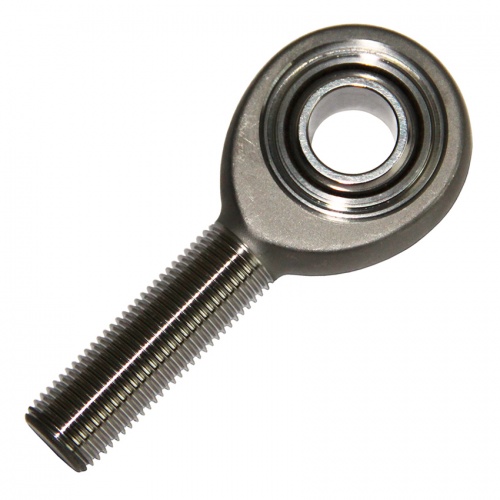

Minebea ARTE(R) Series Rod End Bearings

Raceparts USA are proud to be a suppliers of the superb Minebea ARTE(R) series imperial male rod end bearings, also sometimes referred to as ARTECR series. Manufactured to aircraft and military specifications, these 3 piece precision rod ends have a heat treated 17-4PH stainless steel body, a Teflon liner, a heat treated 410C stainless steel race and a heat treated 440C stainless steel ball.

Wide range of unequal sizes from 1/4" x 5/16" through to 3/4" x 3/4". These are literally the strongest and best available, used for years by most single seater race cars through to F1. This range has fairly low misalignment angles, this can be increased using high angle side spacers or consider the NMB ARYTE Series rod ends, which have integral side spacers and offer high misaligbment angles as standard.

Key Features

  • Manufactured to Aircraft and Military Spec
  • Suited to Suspension and Steering Components
  • 3 Piece Precision Rod Ends with Teflon Liner

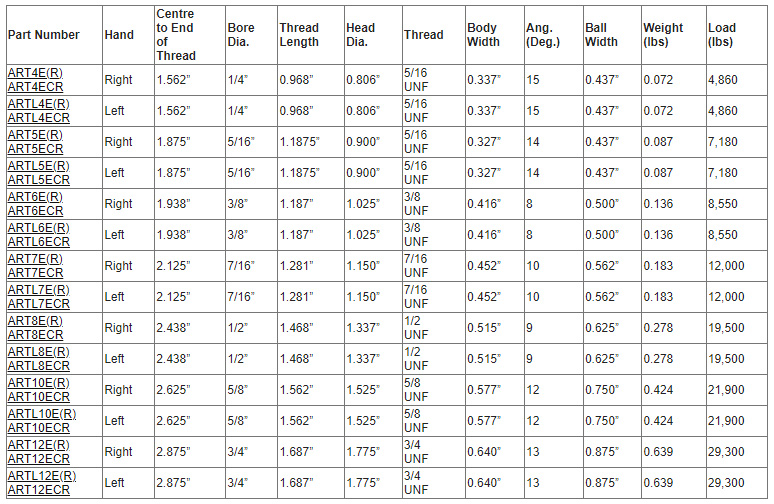

Technical Data
Specification
BrandMinebea
MPNART4E(R), ARTL4E(R), ART5E(R), ARTL5E(R), ART6E(R), ARTL6E(R), ART7E(R), ARTL7E(R), ART8E(R), ARTL8E(R), ART10E(R). ARTL10E(R), ART12E(R), ARTL12E(R)
