FK JMXMT Metric Rod Ends

$16.82
(Exc. 8% Sales Tax - GA only)
M5
M6
M8F
M8
M10F
M10
M12F
M12
M14F
M14
M16F
M16
M18
M20
M20C
M22
M25
M30
RH
LH
In stock, immediate dispatch
+
Part Number
JMX5MT
FK Bearings
Information

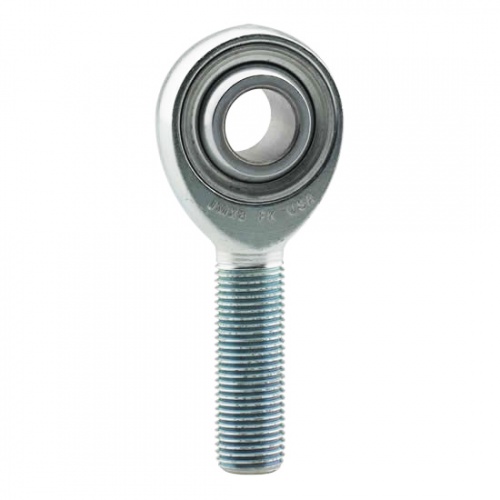

FK Bearings JMXMT Series Rod Ends

FK Bearings JMXMT Series 3 piece high strength precision metric rod ends, suitable for 'suspension and steering' applications. These rod ends feature a 3 piece, high strength shank, with Teflon lined precision lined wear surfaces. The ball is made from 52100 steel, which is heat treated and hard chrome plated.

The race is made from a heat treated steel alloy, which is zinc plated and chromate treated and the body is made from an alloy steel, which is also then heat treated, zinc plated and chromate treated. With 'left and right handed' rod ends available from M5 x 0.8mm through to M30 x 2.0mm.

Please note the T on the end of the part numbers shown in the size chart denotes the 'Teflon Lining', which is what these heims come fitted with, we can supply without the liner or with z grease zert and or a stud pin fitted on the ball end on request, contact us for details.

Key Features

  • Zinc plated, chromate and heat treated outer body/race
  • 52100 chrome plated steel ball with a precision PTFE liner
  • Alloy steel shanks with high static radial load ratings

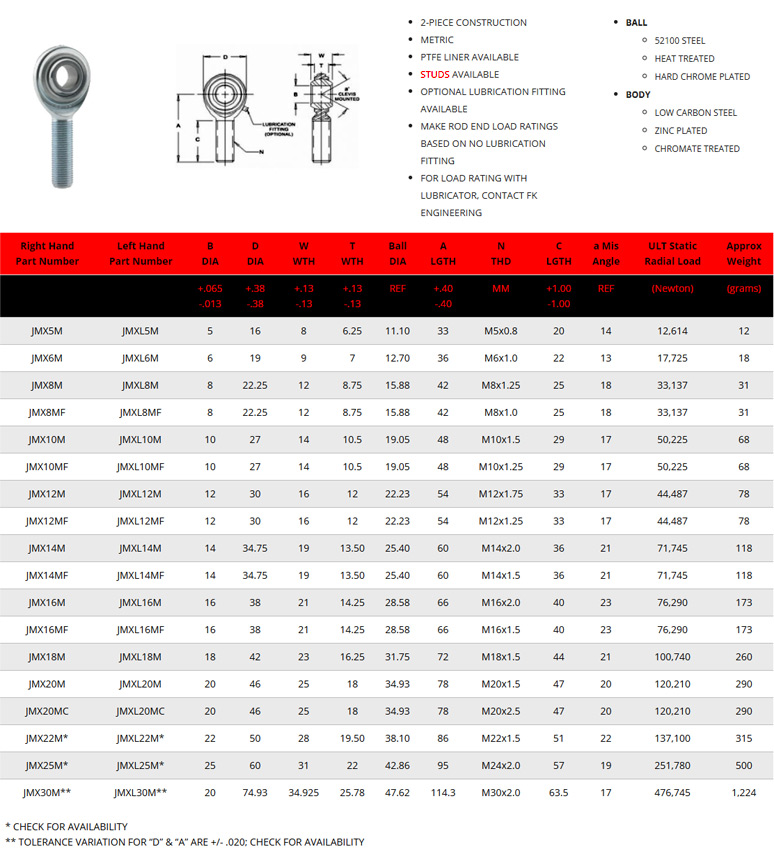

Technical Data
Specification
BrandFK Bearings
MPNJMX5MT, JMXL5MT, JMX6MT, JMXL6MT, JMX8MFT, JMXL8MFT, JMX8MT, JMXL8MT, JMX10MT, JMXL10MT, JMX12MFT, JMXL12MFT, JMX12MT, JMXL12MT, JMX14MFT, JMXL14MFT, JMX14MT, JMXL14MT, JMX16MFT, JMXL16MFT, JMX16MT, JMXL16MT, JMX18MT, JMXL18MT, JMX20MT, JMXL20MT, JMX20MCT, JMXL20MCT, JMX22MT, JMXL22MT, JMX25MT, JMXL25MT, JMX30MT, JMXL30MT
