Minebea ABWT Imperial Spherical Bearings

Minebea ABWT Imperial Spherical Bearings

$29.17
(Exc. 8% Sales Tax - GA only)
1/4
5/16
3/8
7/16
1/2
9/16
5/8
3/4
7/8
1
0.6250
0.6875
0.8125
0.9375
1.0000
1.1250
1.3125
1.3750
1.4375
1.5620
1.6250
1.7500
1.8750
2.1250
Circlip
Staked
In stock, immediate dispatch
–
+
Part Number
ABWT4(R)
Minebea
Information

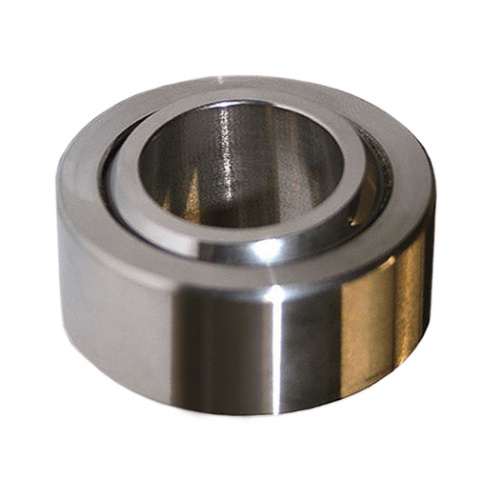

Minebea ABWT Imperial Spherical Bearings

Raceparts USA are proud to be a suppliers of the superb Minebea ABWT imperial spherical bearings. Manufactured to aircraft and military specifications, these wider bodied 2 piece precision spherical bearings have a heat treated 410C stainless steel race, a heat treated 440C stainless steel ball and a Teflon lining.

Sizes range from 1/4" ID through to 1" ID. These are literally the strongest and best available, used for years by single seater race cars through to F1. This range has fairly low misalignment angles, this can be increased using high angle side spacers.

Alternatively consider the Minebea ABYT Series spherical bearings, which have integral side spacers and offer higher misalignment angles as standard. *Image for illustration purposes only.

Key Features

  • Manufactured to aircraft and military spec
  • Ideal for suspension and steering components
  • 2 piece precision sphericals with Teflon liner

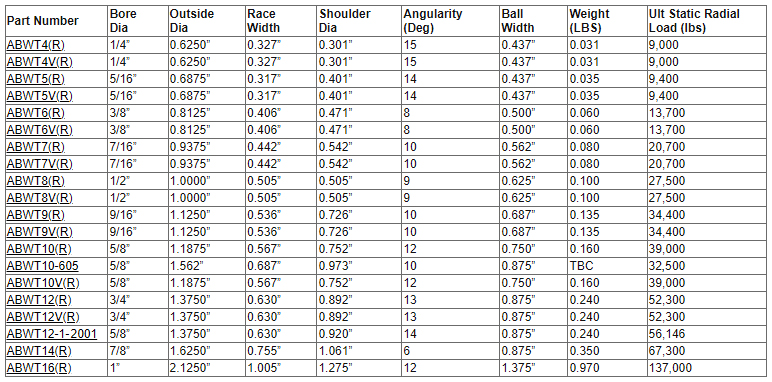

Technical Chart
Specification
BrandMinebea
MPNABWT4R, ABWT4(R), ABWT4VR, ABWT4V(R), ABWT5R, ABWT5(R), ABWT5VR, ABWT5V(R), ABWT6R, ABWT6(R), ABWT6VR, ABWT6V(R), ABWT7R, ABWT7(R), ABWT7VR, ABWT7V(R), ABWT8R, ABWT8(R), ABWT8VR, ABWT8V(R), ABWT8-605, ABWT9R, ABWT9(R), ABWT9VR, ABWT9V(R), ABWT12-1-2001, ABWT10-605, ABWT10R, ABWT10(R), ABWT10VR, ABWT10V(R), ABWT12R, ABWT12(R), ABWT12VR, ABWT12V(R), ABWT14R, ABWT14(R), ABWT16R, ABWT16(R)
