Minebea ARHTE Imperial Rod Ends

$73.07
(Exc. 8% Sales Tax - GA only)
1/4
5/16
3/8
3/8
7/16
1/2
5/8
3/4
RH
LH
In stock, immediate dispatch
+
Part Number
ARHT4E(R)
Minebea
Information

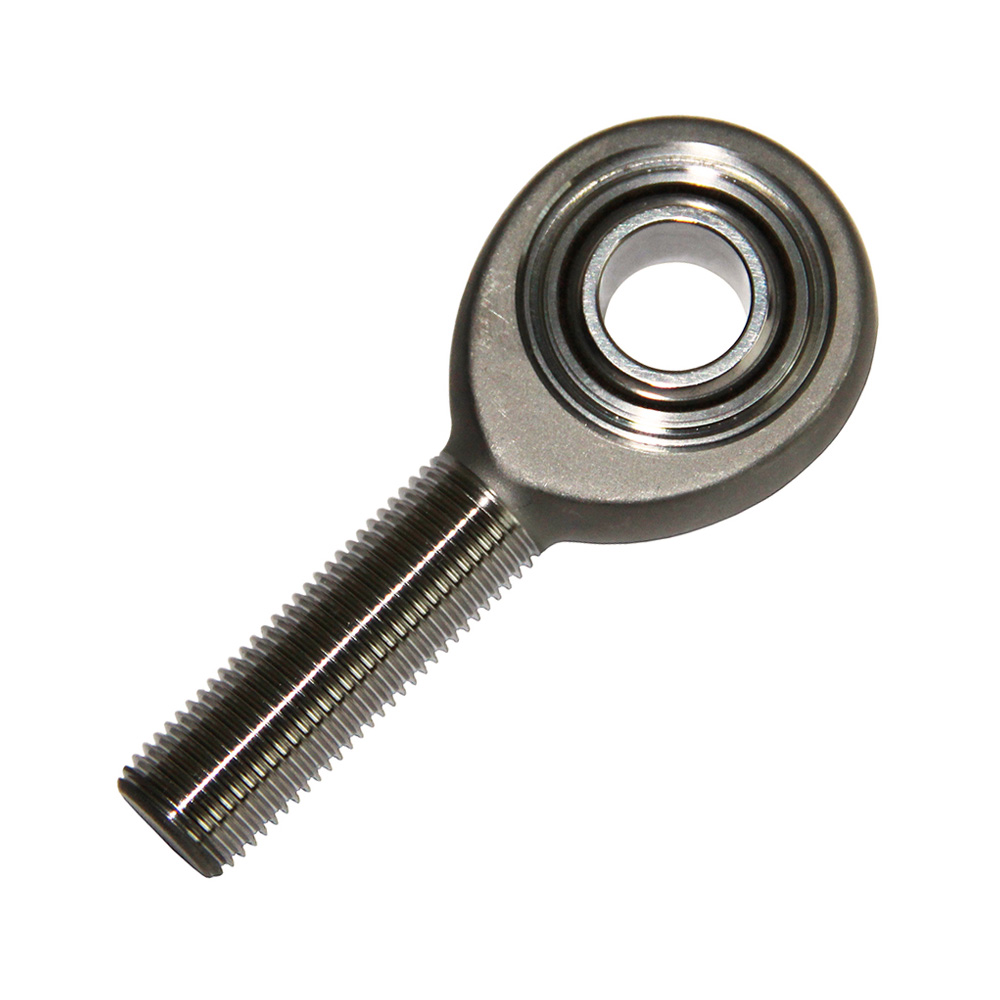

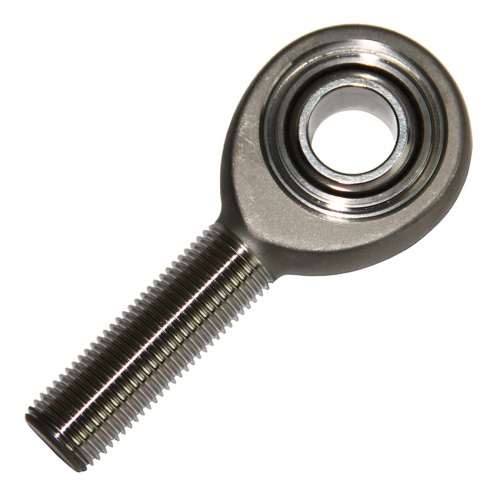

Minebea ARHTE Series Rod End Bearings

Minebea ARHTE series imperial male rod end bearings, sometimes referred to as ARHTECR bearings, although they are produced to the same specification and standards.

Manufactured to aircraft and military specifications, these 3 piece precision rod ends have a heat treated 17-4PH stainless steel body, Teflon liner, heat treated 410C stainless steel race and a heat treated 440C stainless steel ball.

Wide range of unequal sizes from 1/4" x 5/16" through to 5/8" x 3/4". These are literally the strongest and best available, used for years by most single seater race cars through to F1.

Key Features

  • Manufactured to aircraft and military spec
  • Suited to suspension and steering components
  • 3 piece precision rod ends with Teflon liner

This range has fairly low misalignment angles, this can be increased using high angle side spacers or use the NMB ARYTE Series rod ends, which have integral side spacers and offer higher misaligment angles as standard.

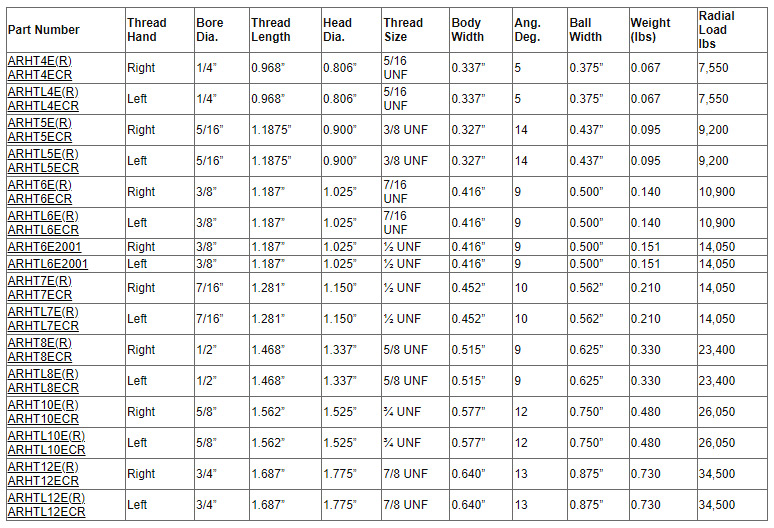

Technical Chart
Specification
BrandMinebea
MPNARHT4E(R), ARHTL4E(R), ARHT5E(R), ARHTL5E(R), ARHT6E(R), ARHTL6E(R), ARHT6E2001(R), ARHTL6E2001(R), ARHT7E(R), ARHT7E(R), ARHT8E(R), ARHT8E(R), ARHT10E(R), ARHT10E(R), ARHT12E(R), ARHT12E(R)
