Minebea ARYTE Imperial Rod Ends

$82.09
(Exc. 8% Sales Tax - GA only)
1/4x3/8
5/16x7/16
3/8x7/16
7/16x1/2
1/2x5/8
5/8x3/4
RH
LH
In stock, immediate dispatch
+
MPN
ARYT4E
Minebea
Information

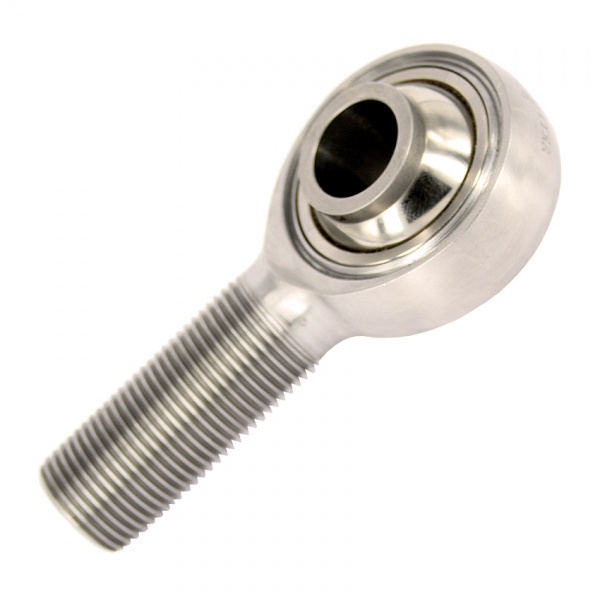

NMB Minebea ARYTE Series Rod End Bearings

NMB Minebea ARYTE series, high misalignment, imperial male rod end bearings, sometimes referred to as ARYTECR bearings, although they are produced to the same specification and standards.

Manufactured to aircraft and military specifications, these 3 piece precision rod ends have a heat treated 17-4PH stainless steel body, Teflon liner, heat treated 410C stainless steel race and a heat treated 440C stainless steel ball.

Wide range of unequal sizes from 1/4" x 5/16" through to 5/8" x 3/4". These are literally the strongest and best available, used for years by most single seater race cars through to F1.

Key Features

  • Manufactured to aircraft and military spec
  • Suited to suspension and steering components
  • 3 piece precision rod ends with Teflon Liner
  • Click the 'TECHNICAL CHART' tab below

This range has much increased misalignment angles, thanks to the integral side spacers, which offer higher misaligment angles than the ARTE and ARHTE variants.

Technical Chart
Specification
BrandMinebea
MPNARYT4E, ARYTL4E, ARYT5E, ARYTL5E, ARYT6E, ARYTL6E, ARYT7E, ARYTL7E, ARYT8E, ARYTL8E, ARYT10E, ARYTL10E
