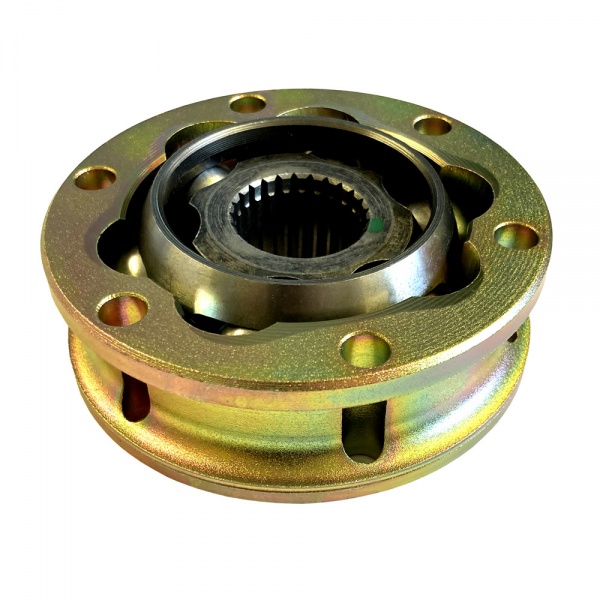

GKN Motorsport 100mm Lightweight CV Joint - Size 12
GKN Motorsport S12 100mm lightweight (LW), standard duty, easy motion cv joints. These plunging constant velocity joints feature a 100mm OD and and have been developed by GKN Motorsport to ensure easy rotational liner motion at for wheel or differential applications.
With over 30 years of continuous development of GKN Driveline products, these GKN Motorsport plunging cv joints offer high levels of reliability and joint service life.
Dimensions
- Joint width: 32mm overall
- Joint spline: 33 splines
- Joint plunge: +/- 8mm
- Joint diameter: 100mm
- Mounting holes: 6 x 8mm
- Bolt hole PCD: 6 x 86mm
Plunging joints are most often used as the inboard joint (transmission side) on FWD vehicles and on the inboard and outboard of RWD and AWD applications with independent suspension.
The plunge on these joints is +/- 8mm. GKN are the largest designer and manufacturer of driveline solutions in the world, which enables GKN Motorsport to offer an unsurpassed range of standard, lightened and easy motion constant velocity joints able to cope with the most demanding applications.
* This product replaces GKN MS6K018
Dimensions
- Lightened design for reduced rotational mass
- Heavy duty, 'Easy Motion' motorsport joints
- Use with the GKN MS6K024 joint Fast boot
