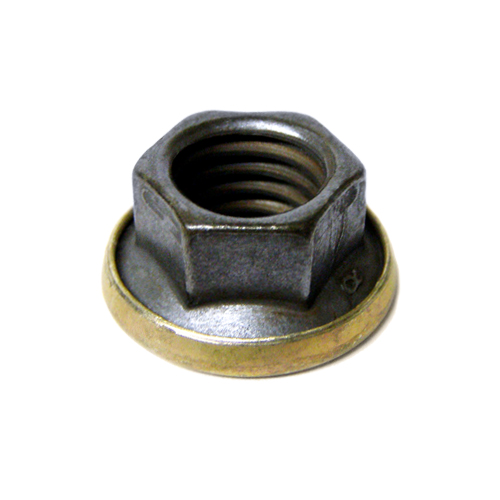

6 Point Captive Washer MET K-Nuts

$3.03

(Exc. 8% Sales Tax - GA only)

ThreadM5 x 0.80 Female

M10

M12

In stock, immediate dispatch

–

MPN

DRS10-05

Information

Arconic aircraft spec lightweight captive washer K-Nuts with metric threads. Suitable for all types of motorsport application, as used by Formula 1 teams.

Features

Ideal for lightweight mechanical fastenings
For the ultimate in race and rally preparation
Used in F1, FSAE, light aircraft and off road

Size Data

Milspec	Raceparts	Thread Size	Spanner Size
NOR2104133X.5	DRS10-03	M3 x 0.50	4mm
NOR2104134x.7	DRS10-04	M4 x 0.70	5mm
NOR2104135X.8	DRS10-05	M5 x 0.80	6mm
NOR2104136X1.0	DRS10-06	M6 x 1.00	7mm
NOR2104137X1.0	DRS10-07	M7 x 1.00	8mm
NOR2104138X1.0	TBC	M8 x 1.00	10mm
NOR2104138X1.25	DRS10-08	M8 x 1.25	10mm
NOR21041310X1.0	TBC	M10 x 1.00	12mm
NOR21041310X1.25	TBC	M10 x 1.25	12mm
NOR21041310X1.50	DRS10-10	M10 x 1.50	12mm
NOR21041312X1.25	DRS10-12	M12 x 1.25	14mm
NOR21041312X1.5	TBC	M12 x 1.50	14mm
NOR21041312X1.75	TBC	M12 x 1.75	14mm
NOR21041314X1.5	DRS10-14	M14 x 1.50	16mm

Specification

Brand	Racetech
MPN	DRS10-03, DRS10-04, DRS10-05, DRS10-06, DRS10-07, DRS10-08, DRS10-10X125, DRS10-10, DRS10-12
