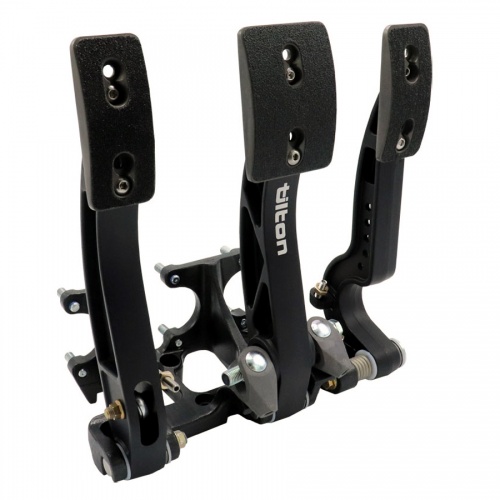

Tilton 600-Series 3 Pedal Floor Mount Assembly
The Tilton 600-Series 3 pedal floor mount assembly, features traditional fixed-mount master cylinders and balance bar technology and provides excellent performance at competitive price. The latest 600-Series pedal assemblies have been re-engineered to incorporate features from the range topping 900 Series.
Available at a more affordable price point for the clubman racer, they provide exceptional driver feedback and include features like PTFE coated aluminum clevises for increased durability and reduced friction. Pedal pivots with wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease stiction.
Large diameter 7/16”-20 balance bar provides maximum rigidity and lightweight aluminum frame features guide 'ramps' help reduce balance bar tipping, decreasing friction and improving brake repeatability. Adjustable clutch pedal stop prevents clutch over-stroking.
As with all Tilton pedal assemblies, ergonomic principles have been applied to reduce driver fatigue. The standard of engineering, materials and workmanship that goes into the production Tilton 600-Series pedal boxes is unmatched by anything in their price range and difficult to beat regardless of budget.
Adjustable pedal ratio (5.29:1, 5.44:1, 5.61:1, 5.75:1) enable the brake pedal to be tuned to driver preference without necessarily needing to change master cylinder bore size, please remember to use metallic hard or braided lines when using in-cockpit mounted brake lines to remain fully race compliant.
Key Features
- Traditional fixed-mount master cylinder layout
- Pedal ratio from 5.29:1 up to 5.75:1 available
- Use with 75-Series or 76-Series master cylinders
- Oil-impregnated bronze pedal pivot bushings
