Tilton 75-Series Alloy Hydraulic Master Cylinder Kits - Compact, High-Performance Design
Tilton’s 75-Series alloy hydraulic master cylinder kits are expertly engineered for applications where space is at a premium. These non-integral master cylinders are 2.4" shorter than the 74-Series, yet they still deliver the full 1.1" stroke, making them ideal for compact setups without compromising on performance.

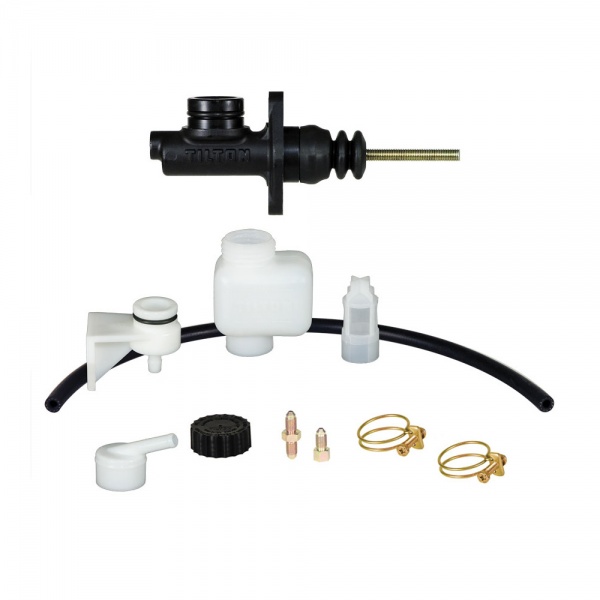

The 75-Series features a single AN3 (3/8-24 UNF) outlet port at the rear, providing efficient fluid transfer. Each kit comes complete with a range of fittings and accessories, including a 200ml direct-fit reservoir, conversion parts for remote mounting, clamps, supply hose and adaptors, ensuring you have everything you need for a seamless installation.
Key Features
- Compact Design – 2.4" shorter than the 74-Series, perfect for space-constrained applications.
- Full 1.1" (28mm) Stroke – Delivers reliable performance for brake, clutch, or hydraulic handbrake systems.
- Durable Construction – Alloy body with a sleek black anodized aluminum finish for enhanced durability and aesthetics.
- Lightweight – Bare cylinder weight is approximately 280g, minimizing impact on your vehicle’s balance and performance.
- Industry-Standard Mounting – Compatible with 2.25" (57mm) center-to-center flange mounting holes for easy integration.
Applications
- Ideal for first-time installations where space limitations are a concern.
- Suitable for brake, clutch, or hydraulic handbrake operation in a variety of racing and performance vehicles.
Variant Size Options
- SKU: 75-625U: Bore size 0.625" / 15.87mm (5/8") internal diameter
- SKU: 75-700U: Bore size 0.700" / 17.78mm (7/10") internal diameter
- SKU: 75-750U: Bore size 0.750" / 19.05mm (3/4") internal diameter
- SKU: 75-812U: Bore size 0.812" / 20.63mm (13/16") internal diameter
- SKU: 75-875U: Bore size 0.875" / 22.22mm (7/8") internal diameter
- SKU: 75-1000U: Bore size 1.000" / 25.40mm (1") internal diameter
Whether you're upgrading or building from scratch, Tilton’s 75-Series master cylinder kits provide a compact, reliable solution that’s easy to install and built to perform under pressure.
