MSD Blaster II Red Ignition Coil
MSD Blaster II Red Ignition Coil

MSD Blaster II Red Ignition Coil

$44.96
(Exc. 8% Sales Tax - GA only)
Order today, dispatch in 3-7 days
+
MPN
8202
MSD Ignition
Information

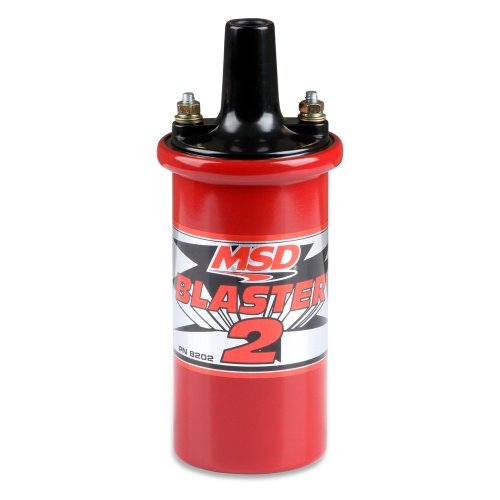

MSD Blaster II Series high performance ignition coil, MSD's famous red canister coil, perfect used with an MSD 6-series ignition system. If you're looking to upgrade your stock coil or want to compliment the performance of your MSD Blaster ignition, MSD 5, 6, or 7, the Blaster coil line is the right choice.

Our Blaster coils are designed for improved spark output, with special 100:1 windings, used to provide maximum build-up of voltage! These windings are held secure and kept cool in an oil-filled metal canister and are designed to mount in most factory canister coil mounts. MSD also offers a chrome coil bracket, PN 8213.

It is recommended to mount the PN 8202, 82023 and 8223 coils in an upright position, however the 'High Vibration' coil, PN 8222, can be mounted in any position due to its epoxy potting compound.

Features:

  • Improved output coil for electronic ignitions, Blaster ignition or MSD 5, 6 and 7 Series (ballast resistor required for points)
  • Alkyd tower with high dielectric properties is less prone to carbon tracking
  • 100:1 turns ratio and lower primary resistance produce high voltage output
  • Metal canister is filled with a premium grade oil for cooling
  • CARB E.O. approved
Specs
BrandMSD
Emission Code1
Inductance8 mH
Maximum Voltage45,000 Volts
Peak Current140 mA
Primary Resistance0.7 OHMs
Product TypeCoil
Secondary Resistance4.5 K OHMs
Spark Duration350 uS
Turns Ratio100:1
WarrantyLimited 1 Year Warranty (PDF)
Weight2.00 lbs
UPC085132082025
Part Number8202
Emissions

This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number.

The following vehicles are considered Emissions Controlled Vehicles:

  • 1966 and newer U.S. manufactured California Certified vehicles
  • 1968 and newer U.S. manufactured Federally Certified vehicles
  • 1968 and newer Foreign manufactured vehicles

  • P65 Warning
     "WARNING: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm.

          CLICK HERE FOR MORE INFORMATION
