MSD Blaster II Chrome Ballast Coil

$74.99
(Exc. 8% Sales Tax - GA only)
Order today, dispatch in 3-7 days
+
Part Number
8200MSD
MSD Ignition
Information

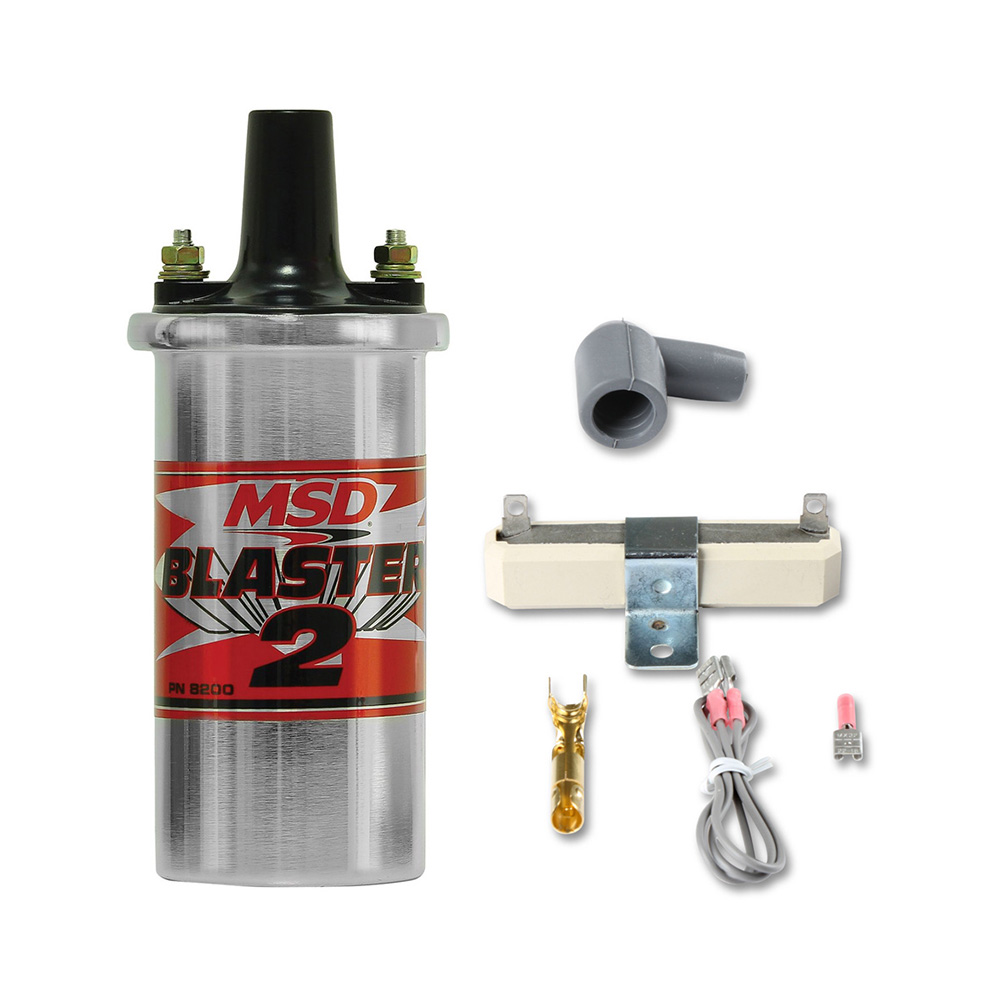

MSD Blaster II Series high performance ignition coil in chrome, supplied with ballast resistor. MSD's famous red canister coils, but chrome plated! If your application uses a points distributor, the ballast must be used, late-model electronic ignitions or an MSD Ignition do not require the ballast.

If you are looking to upgrade your stock coil, or want to compliment the performance of your MSD Blaster ignition 5, 6, or 7, the Blaster coil line is the right choice. Our Blaster coils are designed for improved spark output, with special 100:1 windings, used to provide maximum build-up of voltage!

These windings are held secure and kept cool in an oil-filled metal canister. The Blaster coil is designed to mount in most factory canister coil mounts, MSD does also offer a chrome coil bracket, PN 8213 and it is recommended to mount the PN 8202, 82023 and 8223 coils in an upright position.

Features:

  • Improved output coil for electronic ignitions, Blaster ignition or MSD 5, 6 and 7 Series
  • Supplied with two spark plug wire boots, terminals and ballast resistor (required with stock points ignition)
  • Alkyd tower with high dielectric properties is less prone to carbon tracking
  • 100:1 turns ratio and lower primary resistance produce high voltage output
  • MSD's chromed metal canister is filled with a premium grade oil for cooling
  • CARB E.O. approved
Specs
BrandMSD
Emission Code3
Inductance8 mH
Maximum Voltage45,000 Volts
Peak Current140 mA
Primary Resistance0.7 OHMs
Product TypeCoil
Secondary Resistance4.5K OHMs
Spark Duration350 uS
Turns Ratio100:1
WarrantyLimited 1 Year Warranty (PDF)
UPC085132082001
Part Number8200MSD
Emissions

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

  • 1965 and older U.S. manufactured California Certified vehicles
  • 1967 and older U.S. manufactured Federally Certified vehicles
  • 1967 and older Foreign manufactured vehicle

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

The following vehicles are considered Emissions Controlled Vehicles:

  • 1966 and newer U.S. manufactured California Certified vehicles
  • 1968 and newer U.S. manufactured Federally Certified vehicles
  • 1968 and newer Foreign manufactured vehicle
