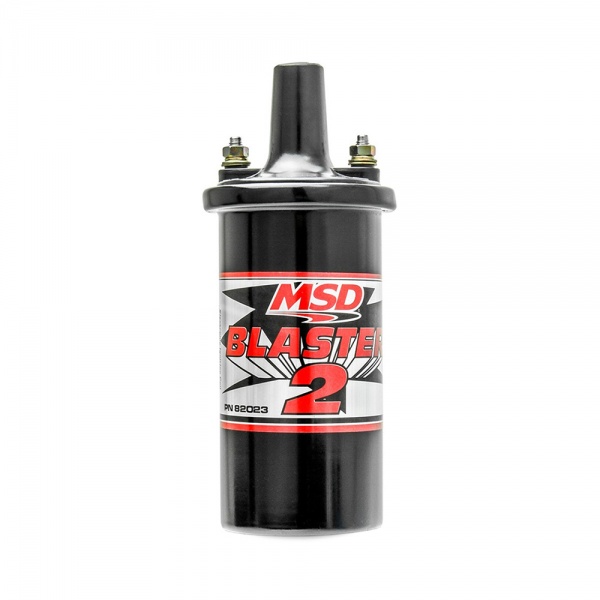

MSD Blaster II Black Ignition Coil

$44.96
(Exc. 8% Sales Tax - GA only)
Order today, dispatch in 3-7 days
+
Part Number
82023
MSD Ignition
Information

MSD Blaster II Series high performance ignition coil in black, MSD's famous red canister coil, but in black, a great choice when used with an MSD 6-series ignition system. If you're looking to upgrade your stock coil or need to compliment the performance of your MSD Blaster ignition 5, 6, or 7, the Blaster coil line is the right choice.

Our Blaster coils are designed for improved spark output, with special 100:1 windings, used to provide maximum build-up of voltage! These windings are held secure and kept cool in an oil-filled metal canister.

Blaster coils are designed to mount in most factory canister coil mounts, but if needed MSD offer a chrome coil bracket, PN 8213. It is recommended to mount the PN 8202, 82023 and 8223 coils in an upright position.

Features:

  • Improved output coil for electronic ignitions, Blaster ignition or MSD 5, 6 and 7 Series (ballast resistor required for points)
  • Alkyd tower with high dielectric properties is less prone to carbon tracking
  • 100:1 turns ratio and lower primary resistance produce high voltage output
  • Metal canister is filled with a premium grade oil for cooling
  • CARB E.O. approved
Specs
Brand MSD
C.A.R.B. EO # D-40-37
Color Black
Emission Code 1
Inductance 8 mH
Maximum Voltage 45,000 Volts
Peak Current 140 mA
Primary Resistance 0.7 OHMs
Product Type Coil
Secondary Resistance 4.5K OHMs
Spark Duration 350 uS
Turns Ratio 100:1
Warranty Limited 1 Year Warranty (PDF)
UPC 085132820238
Part Number 82023
Emissions

This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number.

The following vehicles are considered Emissions Controlled Vehicles:

  • 1966 and newer U.S. manufactured California Certified vehicles
  • 1968 and newer U.S. manufactured Federally Certified vehicles
  • 1968 and newer Foreign manufactured vehicles

  • P65 Warning
     "WARNING: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm.
