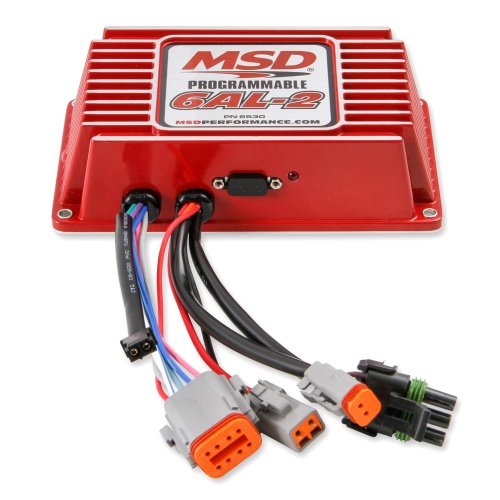

MSD 6AL-2 Programmable Ignition Controller 6530 in Red
MSD 6AL-2 Programmable Ignition Controller 6530 in Red
MSD 6AL-2 Programmable Ignition Controller 6530 in Red

MSD 6AL-2 Programmable Ignition Controller 6530 in Red

$449.96
(Exc. 8% Sales Tax - GA only)
Order today, dispatch in 3-7 days
+
Part Number
6530
MSD Ignition
Information

MSD programmable 6AL-2 ignition controller in red, also available in black, CLICK HERE and take a look. The Programmable 6AL-2 lets you lock out the distributor and program a timing curve via a PC.

You'll also be able to set a 2-step rev limiter, a retard for use with nitrous and even a boost timing curve for forced induction engines and this model shares the same advanced features of the new 6AL-2 with 535 primary volts and spark energy reaching 135 mJ! Vibration mounts, wiring and a PC cable are supplied.

Must use MSD Pro-Data+ software to program, these programmable 6AL-2 are ideal for those looking to gain the absolute max performance from their engine. The programmable element of this unit offers adjustments in the characteristics / performance of the engine.

The MSD Pro-Data software is available from the MSD website or on CD.

Features

  • Advanced features allow for use in street and racing applications
  • PC programmable with easy-to-use Windows based Pro-Data +Software
  • Plot a boost timing map with 0.1° per psi accuracy
  • Programmable 3-step rev limiter (100 RPM increments)
  • Step retard for nitrous applications plus a boost timing map
  • Capacitive Discharge technology for fast rise time and maximum spark energy
  • EO # D-115-22
Specs
BrandMSD
ColorRed
Current Draw0.7 Amp per 1,000 RPM
Emission Code1
EO NumberD-115-22
Primary Voltage535 Volts
Product TypeDigital Programmable 6AL-2 Ignition
RPM Range12,500 RPM with 14.4 volts
Secondary Voltage45,000 Volts
Spark Energy135 mJ per spark
Voltage Required12-18 Volts, Negative Ground
WarrantyLimited 1 Year Warranty (PDF)
Weight and Size3 lbs, 7" L x 4" W x 2" H
UPC085132065301
Part Number6530
Emissions

This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number.

The following vehicles are considered Emissions Controlled Vehicles:

  • 1966 and newer U.S. manufactured California Certified vehicles
  • 1968 and newer U.S. manufactured Federally Certified vehicles
  • 1968 and newer Foreign manufactured vehicles
