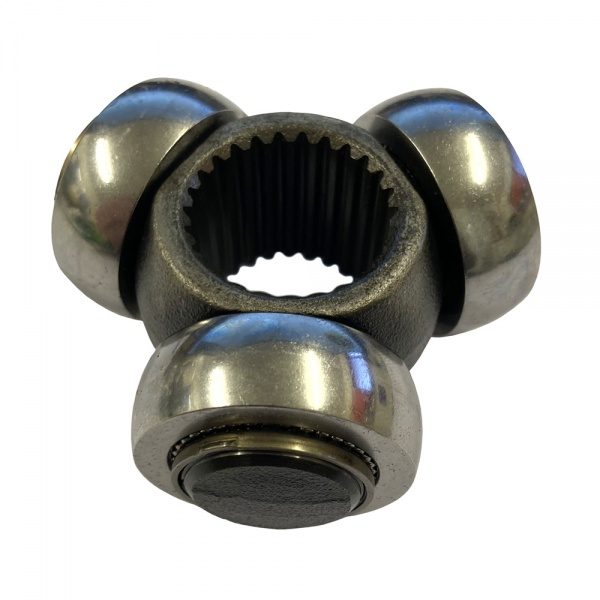

GKN Motorsport GI69 Tripode Joint
GKN Motorsport GI69 tripode joint, with 22 splines. Tripode joints offer extremely low plunging forces and greater efficiency while operating at higher angles.
Housings can be produced from forgings or from solid material and can be designed to utilise a Lobro style bolt pattern making the swap from CV joints to tripode joints, simple, literally making them a 'plug in' alternative.
Key Features

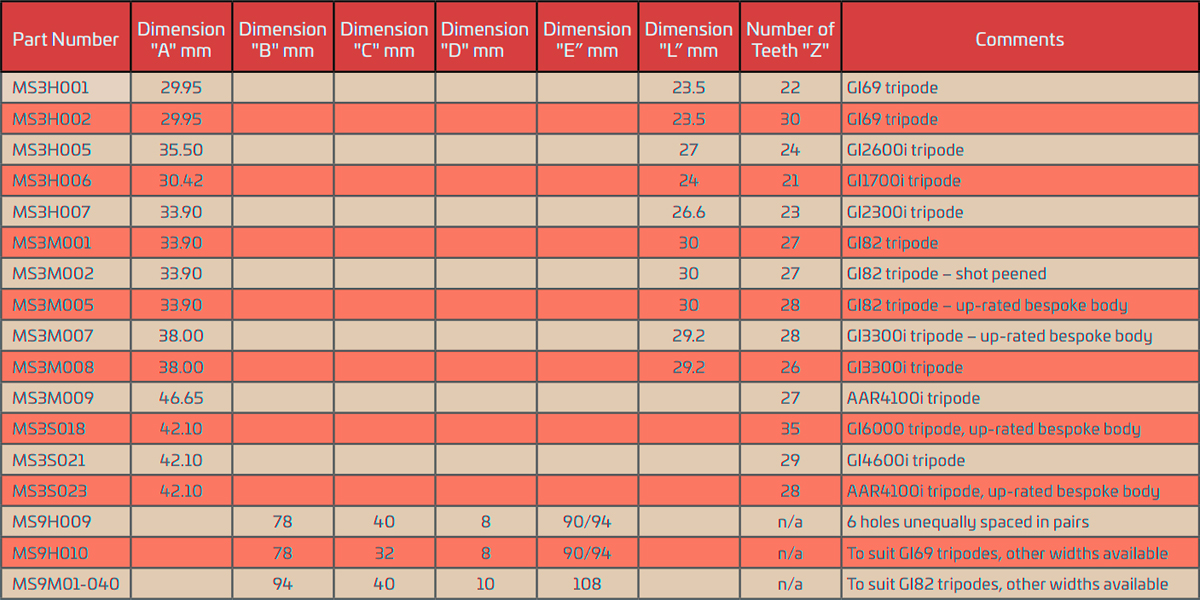

- 'A'= 29.95mm, 'L'= 23.5mm, 'Z'= 22 teeth
- Lower plunging force reduces power sapping
- Various GKN tripode housings available
"When selecting GKN Motorsport tripodes for your application, the roller bearing outside diameter 'A' needs to match your existing tripodes. Match this diameter, then compare the body length 'L' and look for a matching spline count 'Z'. If no matches exist, custom made shafts might offer a solution." - rpusa
For assistance selecting the right tripode units or to discuss possible solutions, please send us a MESSAGE or give us a ring on: +1 770-889-0499.
