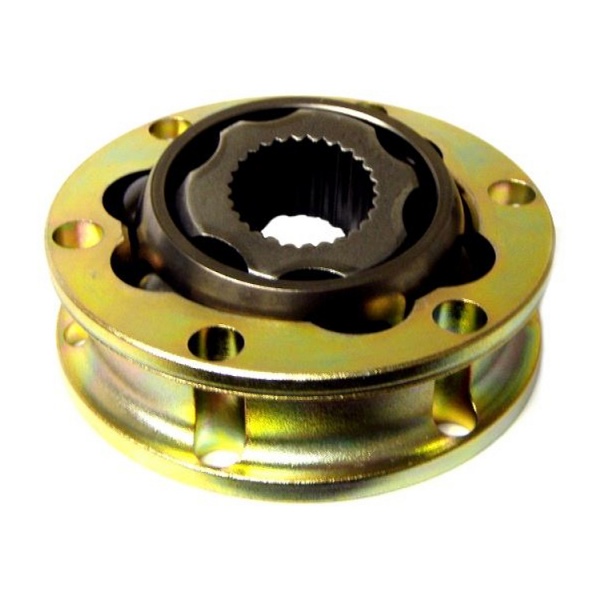

GKN Motorsport 108mm Lightweight CV Joints - Size 15
GKN Motorsport 108mm lightweight size 15 CV joints, these deep plunging constant velocity joints feature a 108mm OD and and have been developed by GKN Motorsport to ensure easy rotational liner motion at for wheel or differential applications.
With over 30 years of continuous development of GKN Driveline products, these GKN Motorsport plunging CV joints offer a significant weight reduction, cooler running temperatures and enhanced joint life through higher performance.
Dimensions
- Joint width: 32mm
- Joint spline: 28 splines
- Bolt holes: 10mm x 6
Plunging joints are most often used as the inboard joint (transmission side) on FWD vehicles and on the inboard and outboard of RWD and AWD applications with independent suspension.
The plunge on these joints is +/- 13mm. GKN are the largest designer and manufacturer of driveline solutions in the world, which enables GKN Motorsport to offer an unsurpassed range of standard, lightened and easy motion constant velocity joints able to cope with the most demanding applications.
For use with the GKN MS6N001 or the MS6N011 high angle joint fast boots.
Key Features
- Zinc passivated finish for protection
- 20% weight saving over a standard joint
- Use with the GKN MS6N001 joint fast boots
