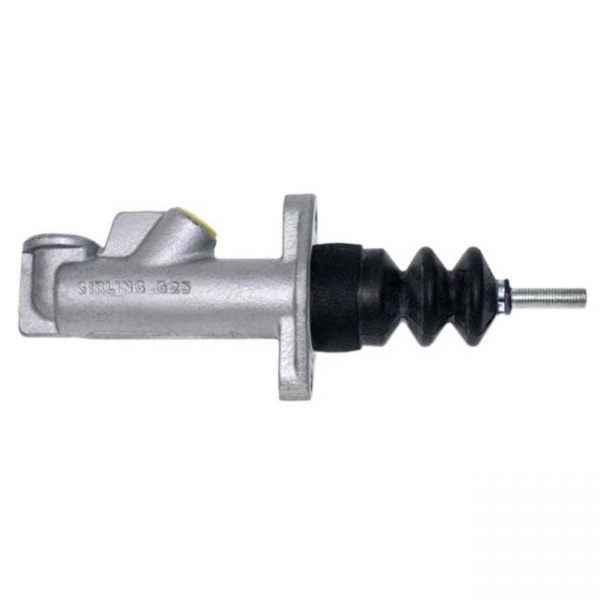

Girling Non-Integral Master Cylinders
Girling aluminium non-integral master cylinders, world reknown for reliability and fitted to thousands of race and rally cars worldwide. Copied by many and these days flowing out of China, you can't beat the original Girling product and we always say don't waste your time and money buying and fitting cheaper alternatives!
They feature a 7/16-18 UNF inlet port, 3/8-24 outlet port, industry standard 2.25" flange mounting bolt centres and are suitable for a high proportion of all pedal boxes and hydraulic handbrakes in the market place. They feature a 35mm stroke and are supplied with a 5/16" UNF threaded push rod.
Available in 5 popular sizes, with an approximate weight of 340g.
Key Features
- AN4 (7/16-18) flat rear fluid inlet port
- AN3 (3/8-24) 45° front fluid outlet port
- Industry standard 2.25" flange centres
- Suits Tilton 600 series pedal boxes
