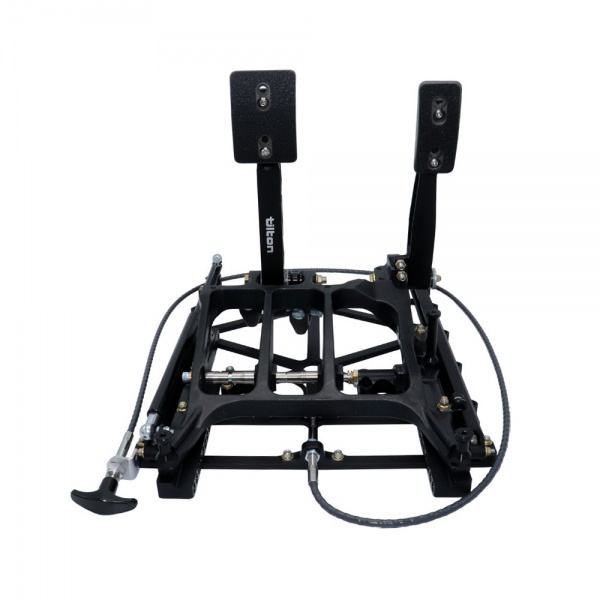

Tilton 850-Series 2-Pedal Underfoot Pedal Assembly

Tilton’s 850-Series 2-pedal underfoot pedal assembly with 'Slider System' is designed to meet FIA’s fixed seat regulations. This enables the entire pedal box to be adjusted for driver changes during endurance race events, ideal for different height drivers using the same vehicle, such as racecar rentals or driving school cars.

850-Series pedal assemblies merge the performance of 900-Series pedal assembly technology and the renowned value of 600-Series pedal assemblies. Features a high-efficiency balance bar designed to limit motion to the horizontal plane, reducing friction and brake pressure migration.

Please remember to use metallic hard or braided lines for supply and output when using in-cockpit mounted brake lines to remain fully race compliant. Designed for use with Tilton's 78-Series and 79-Series master cylinders. Supplied without master cylinders or linkages, all available separately.

Key Features

  • Professional underfoot master cylinder layout
  • Use with Tilton 78 or 79-Series master cylinders
  • Slider system meets FIA’s fixed seat regulations
  • Pedal ratio from 4.8:1 up to 6.1:1 available
Product Data

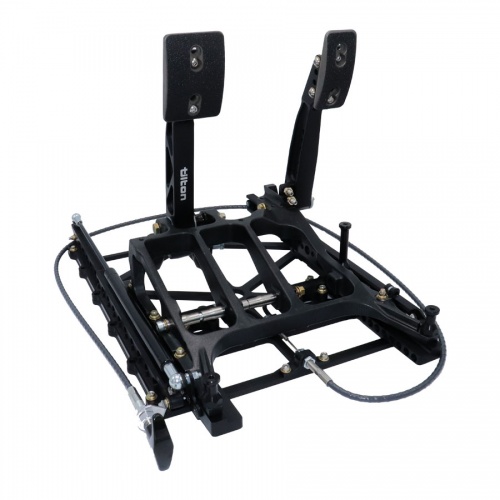

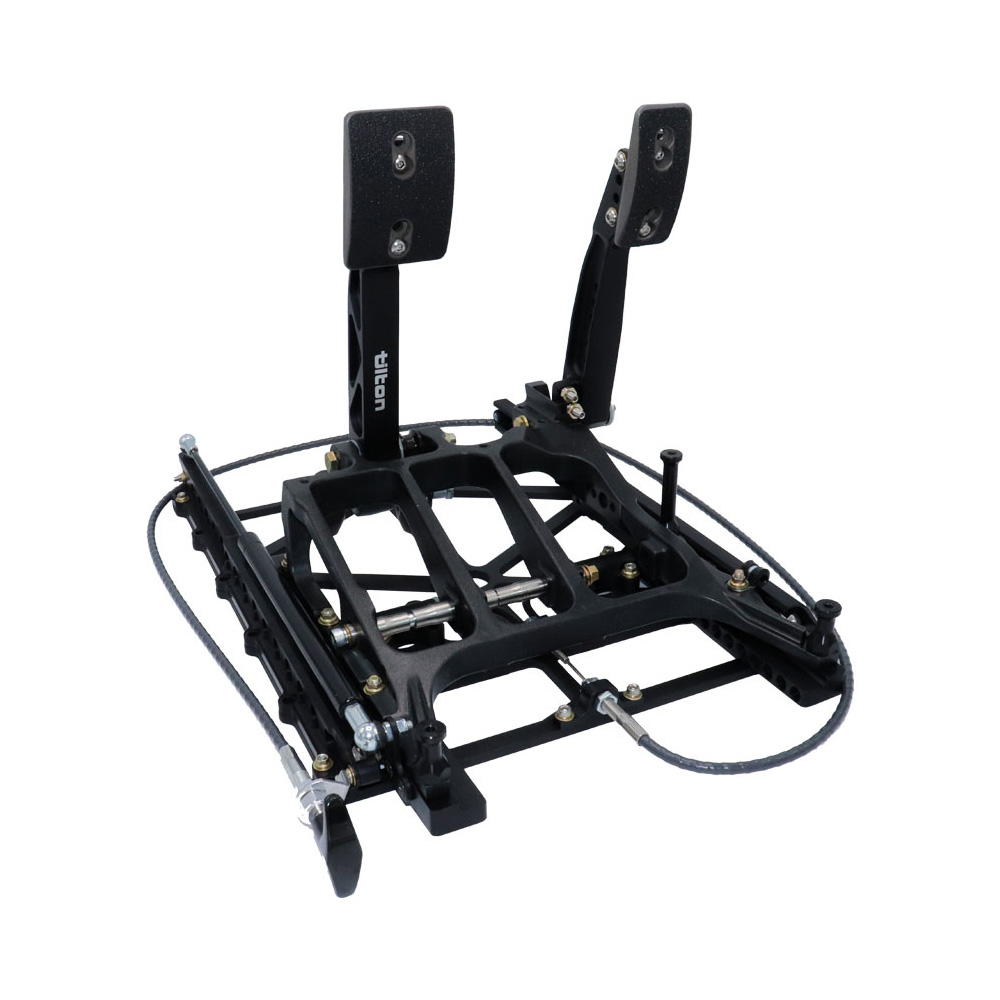

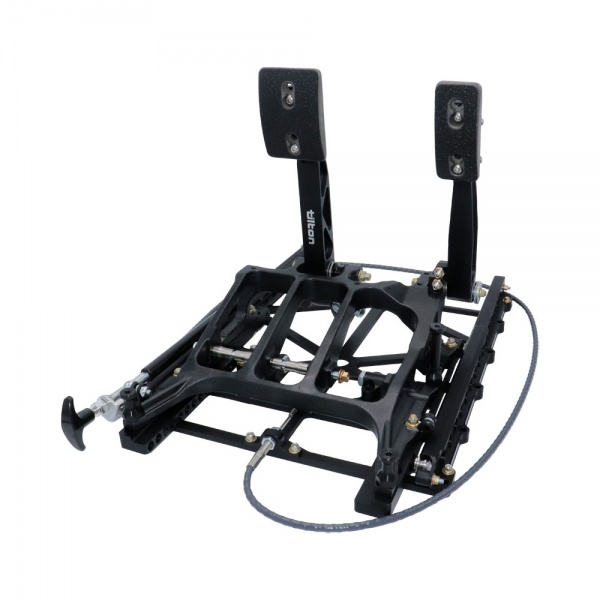

  • 14-position slider system with 7” of travel enables quick adjustment for driver changes
  • High-efficiency balance bar and pivot-mount master cylinders design
  • Forged aluminum pedals engineered for high rigidity and low weight
  • Adj. pedal ratio (4.8:1 to 6.1:1) enables the brake pedal tuning without changing master cylinder sizes
  • Foot pads can be adjusted vertically, horizontally and in angle to suit individual driver preferences
  • Lightweight and high-strength aluminum frame
  • 7/16” diameter balance bar provides maximum rigidity
  • PTFE coated aluminum clevises allow for increased durability and reduced friction
  • Pedal pivot wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease stiction

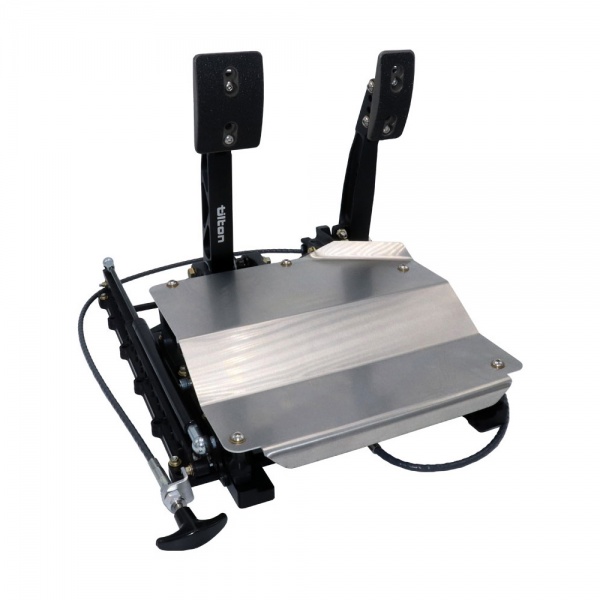

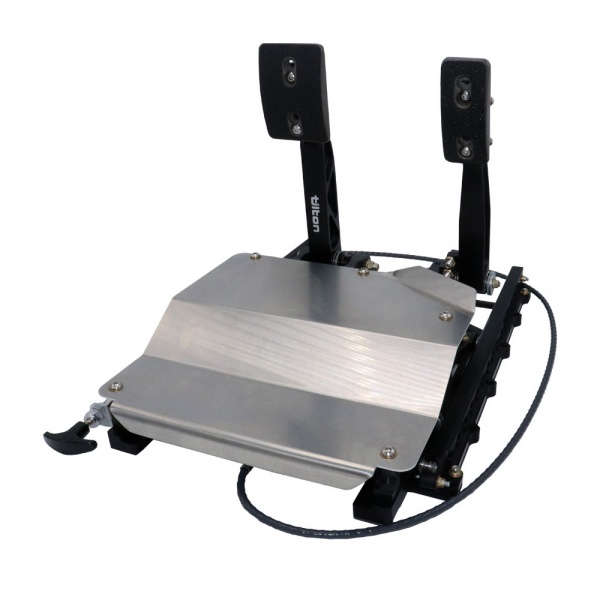

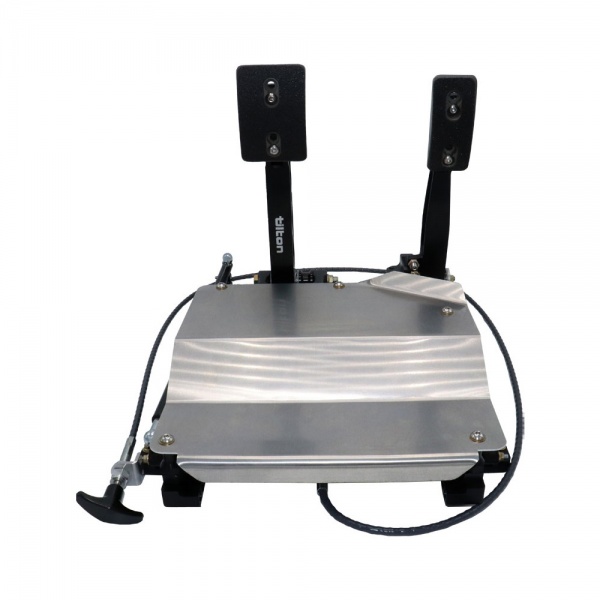

  • This 850-Series sliding pedal assembly includes a Tilton false floor kit
  • Throttle linkage kits options for mechanical linkage and Drive-by-Wire systems (sold separately)
