Staubli SPT08 Aluminum Sockets

Staubli SPT08 Aluminum Sockets

  • Safe dry break connections
  • Suitable for FIA fuel sampling
  • High 8mm flow performance
    • $236.70
    (Exc. 8% Sales Tax - GA only)
    -06 JIC
    -08 JIC

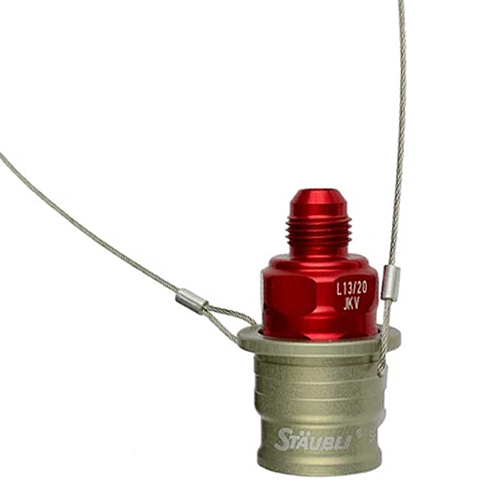

    with Lanyard
    Standard
    Order today, dispatch in 7-14 days
    –
    +
    MPN
    SPT08.3655/L/JV
    Staubli
    Information

    Staubli SPT08 Aluminium Sockets

    Staubli SPT08 aluminium sockets with an 8mm flow diameter (5mm and 12mm also available). SPT couplings for inboard fuel lines meet the tough requirements of motorsports by combining high 8mm flow performance with reliable non-spill safety. Staubli SPT08 sockets are very compact and lightweight, designed to easily fit into all types of vehicles. Applications: Connection to fuel lines (with breakaway option), FIA-approved sampling, refueling of rally raid vehicles (rally raid version).

    * NB - Images for type / model illustration only - please do not rely on part numbers visible on images when selecting products!)

    Technical Specifications:

    • Bore Diameter: 8mm
    • Maximum Working Pressure: 40 bar
    • Operating Temperatures: -10 to +200°C

    Fluids:

    • Fuel, Oil

    Construction:

    • Manufactured in high-resistance anodized aluminum
    Specification
    BrandStaubli
    MPNSPT08.3655/L/JV, SPT08.1655/L/JV, SPT08.3656/L/JV, SPT08.1656/L/JV
