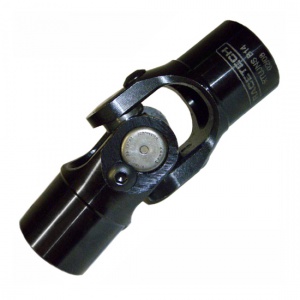

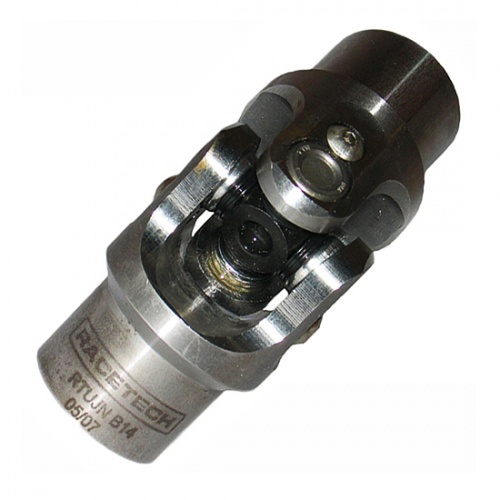

Racetech High Spec Universal Joints

$153.87
(Exc. 8% Sales Tax - GA only)
1/2" x 1/2"
5/8" x 5/8"
3/4" x 3/4"
Blank
Order today, dispatch in 7-14 days
+
MPN
RTUJNSB10
Overall Length
3.188" / 80.98mm
Rating
3000 lbs/ft
Max Angle
35⁰ Deflection
Racetech
Information

Racetech high specification universal joints, these high spec needle bearing universal joints are even stronger and longer lasting than the original mil spec joints. They have the ability to be rebuilt when wear and tear occurs and are a sealed and lubricated cross and bearing type joints.

Priced each

  • Ability to handle higher angles and RPM
  • Fatigue proof steel, near zero backlash
  • Rigid axial stiffness for push / pull loads
  • Universal joints specificed for gear linkages
Data Sheet
PART No.OD JOINTOD HUBINSIDE DIALENGTHMAX ANGLEFAIL TORQUE
RTUJNB101.250"0.875"0.500"3.188”35⁰3000lbs/in
RTUJNB121.250"0.875"0.625"3.188”35⁰3000lbs/in
RTUJNB141.250"1.000"0.750"3.188”35⁰3000lbs/in
RTUJNB1.250"1.250"BLANK3.188”35⁰3000lbs/in
