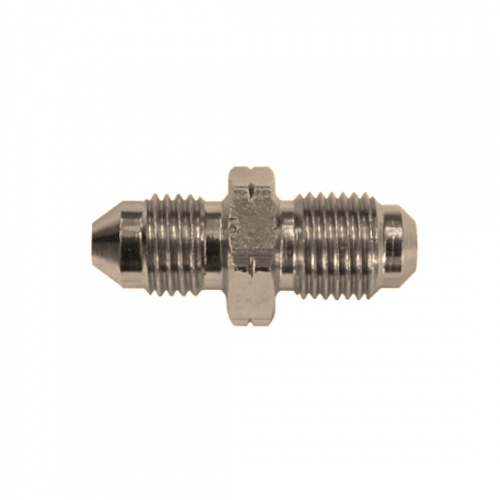

Goodridge JIC to Metric Straight Stainless Adaptors
Goodridge JIC to MET, straight conversion adaptors, manufactured in stainless steel for superior corrosion resistance. Extremely useful for joining two female hose ends, perfect to create detachable sections, they feature a JIC convex male thread one end and a Metric convex male the other.
Key Features
- Suitable for performance or motorsport vehicles
- Useful adaptor when installing racing fluid lines
- Compatible with all other quality manufacturers
600 Series Reusable Fittings
The body seals to the hose using an olive and socket as shownReplacement olives and sockets are available separately
JIC Thread Sizes
-02 JIC (5/16-24 UNF)
-03 JIC (3/8-24 UNF)
-04 JIC (7/16-20 UNF)
-05 JIC (1/2-20 UNF)
-06 JIC (9/16-18 UNF)
-08 JIC (3/4-16 UNF)
-10 JIC (7/8-14 UNF)
-12 JIC (1 1/16-12 UNF)
-16 JIC (1 5/16-12 UNF)
-20 JIC (1 5/8-12 UNF)
-24 JIC (1 7/8-12 UNF)
