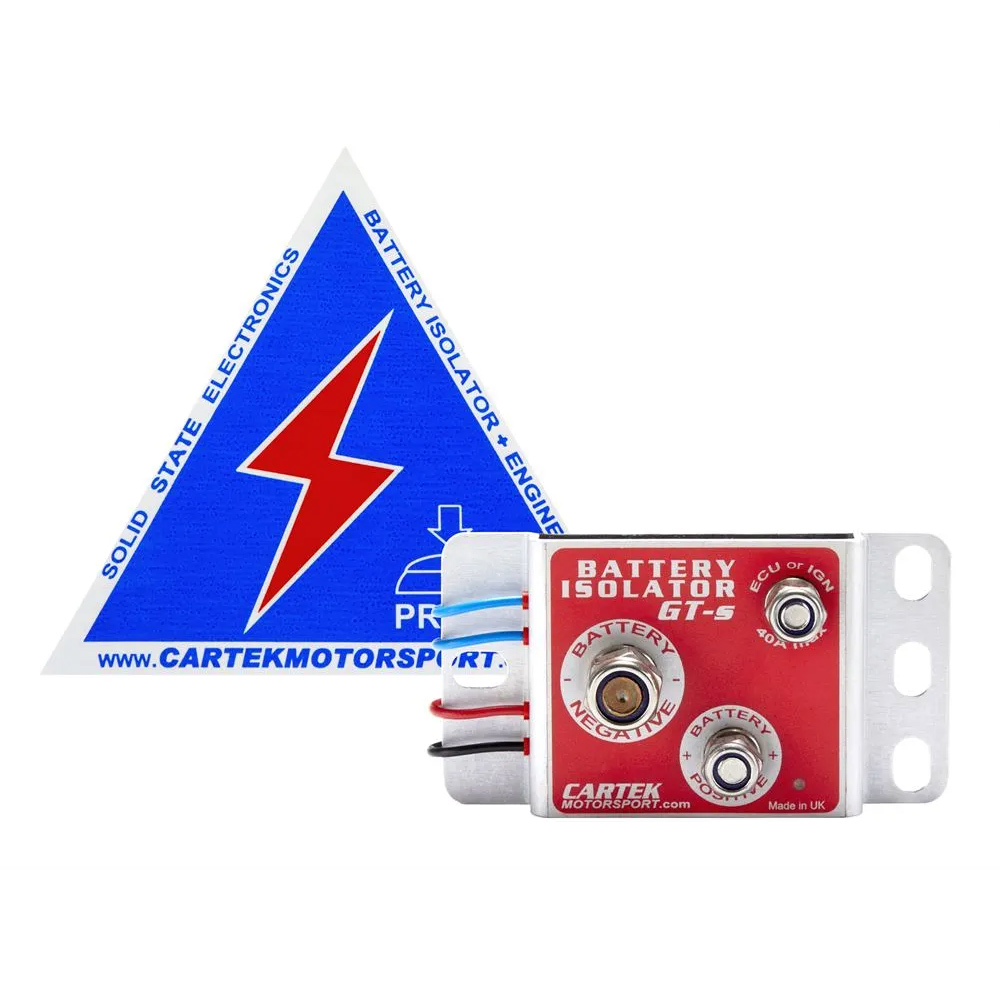

The Cartek GT Battery Isolator Unit
Product Overview
A very small and highly reliable alternative to the traditional mechanical master-switch, designed to overcome all of the problems and restrictions associated with mechanical and electro/mechanical safety cut-out switches.
When fitted to a race car these solid state battery isolators simultaneously isolate the battery and kills the engine immediately when triggered, in accordance with FiA safety regulations. This kit includes the GT isolator unit and safety stickers only.
Battery Isolation
The battery isolators work by being fitted in between the negative side of the battery and the chassis. When the external kill button has been activated or the internal button been switched to the off state, then the battery isolator will disconnect the negative side of the battery from the chassis.
This means that no power can get to any of the electrical circuits as there is a break in the circuit.
Engine Kill
The Cartek GT battery isolator kills the engine by taking in a fixed 12v input and sending a 12v output that would power your ignition or ECU. When the negative side of the battery has been disconnected it will also cut the 12v output powering your ignition or ECU, this will kill the engine.
Built in Protection
The Cartek GT battery isolator comes with built in alternator run down protection meaning no extra wiring and no extra components.
How is it controlled?
The two electronic isolation circuits are controlled by microprocessors and incorporate various safety systems including over-temperature and over-current monitoring. These microprocessors also monitor the kill switches / buttons for instant activation without false triggering.
