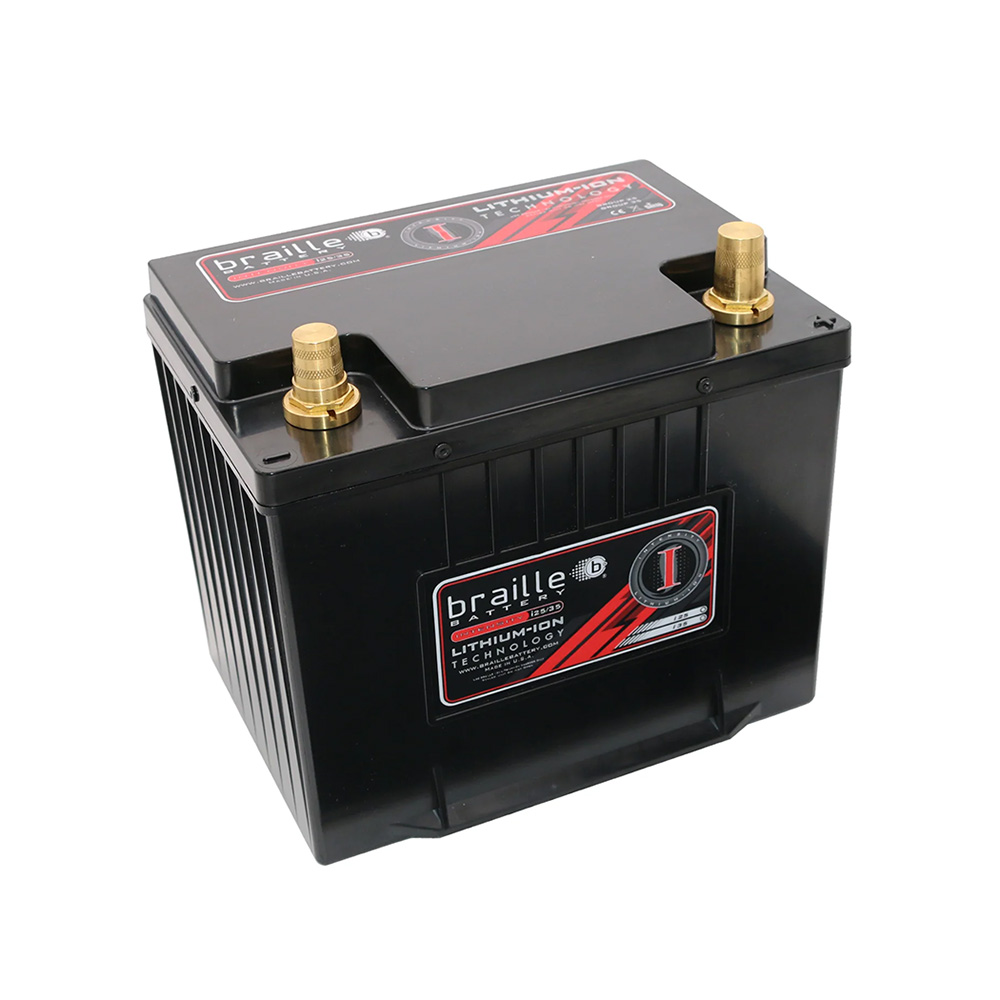

Braille i35X Intensity Lithium battery, has the footprint of a Group 35 battery, with a left hand positive terminal layout and weighs just 10.0lbs. Braille's Lithium-Ion Technology produces a battery with more power that is lighter, stronger and more efficient, over 50% lighter than the OEM fitted lead acid batteries, that's why it's the No.1 choice for these high performance vehicles:
Nissan 350Z & 370ZSubaru Impreza WRX/STI & BRZToyota GT86 & GR86+ many more that use the same size battery!
Fitted with threaded posts, with screw on SAE conversion posts included. A proper upgrade battery, Braille Lithium delivers a higher, cleaner voltage which improves the performance of every electrical component and has shown to provide:
Max weight Savings!! (Lithium 10lbs Vs. 45-60lbs for a lead battery)100% compatible with ALL standard types of charging systemCan be used in total loss, no alternator fitted, applicationsTrue 'Race Grade' lithium battery Made in USA (Sarasota, Florida)What's more Braille batteries don't self-discharge, so with the battery disconnected (no draw or via power disconnect switch), they can sit for over a year and still have over 13 volts to start the vehicle. Over a decade of use in street and race vehicles, as well as being used by more professional race teams, car builders and race series globally than any other lithium battery on the market!!
Do yourself a favour, order your Braille i35X today and get all these benefits in one simple step, it makes it a very cost effective upgrade!!
| BATTERY | BCI GROUP | LENGTH | WIDTH | HEIGHT | WEIGHT | POLARITY |
| i35X | 35 | 9.4" / 239mm | 6.9" / 173mm | 8.0" / 203mm | 10.0lbs / 4.5KG | RIGHT SIDE +VE |
| VOLTAGE | FULL VOLTAGE CHARGE | PULSE CRANKING AMPS (PCA) | AMP HOURS (AH) | AMP HOURS (LAH)* | LIFE CYCLE (10% DOD) |
| 12 | 13.8 | 1297 | 20 | 60 | 5000+ |
* Lithium Amp/Hour, Lead Acid Equivalent
Braille Intensity lithium batteries come in common Group 34, 31 and 65 sizes. Direct drop in upgrade that is 100% compatible with ALL standard charging systems and can also be used in race cars with a 'total loss' (no alternator) setup. A lithium charger is required to keep batteries charged on vehicles with a parasitic draw (computer, alarm, etc.) but with no draw, Braille lithium batteries can sit for a year and still be at 90% state of charge. Braille is the only American Made 'Race Grade' lithium battery on the market used by more OEM factory and purpose built race cars, professional race series and also spec lithium battery in several cases around the world!
With an annual failure rate of less than 1/2 of 1% (those caused by abuse, improper maintenance, etc.), you can have the most reliable lithium battery on the market with over a decade of actual use on race and street cars for any vehicle you have!! There is a difference between the other 'consumer grade' lithium batteries with a bunch of 'bells and whistles' that don't match up to the performance and reliability of Braille 'race grade' batteries....our pedigree, racing history and customers speaks for itself!! Call Raceparts USA with any questions you may have as to which battery is right for your vehicle based on goals, usage, goals, etc.!
Braille Battery Terminal Details
These batteries come with these adaptable battery terminals, they allow you to connect the battery using your vehicles OEM terminal clamps on the SAE type posts provided, perfect to avoid modifying your cars wiring loom! But they can also be easily unscrewed to convert the battery to allow attachment via a ring type termination, which can be attached firmly into place as desired. The second method is ideal for those who have modified their OEM loom or have perhaps created a custom wiring solution for their machine.
