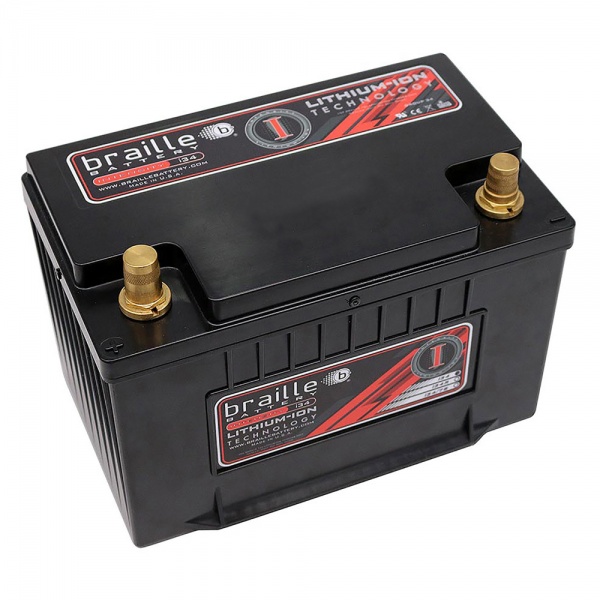

Braille i34S Intensity Lithium battery has the footprint of a single Group 34 battery, with a left hand positive terminal layout and weighs just 18.9lbs. Braille's Lithium-Ion Technology produces a battery with double the power, that is lighter, stronger and more efficient. Fitted with threaded posts, with screw on SAE conversion posts included.
Fit an upgrade in a common Group 34 size, over 50% lighter, Braille Lithium delivers a higher, cleaner voltage which improves the performance of every electrical component and has shown to provide:
Quicker starting, a full volt higher than lead and less voltage drop during crankingImproved engine management and data logging performance, through more stable voltageMax weight Savings, 18.9lbs Vs. 80-100lbs for pair of Group 34 lead batteries100% compatible with ALL standard types of automotive charging systemCan be used in total loss, no alternator fitted, motorsport applicationsTrue 'Race Grade' lightweight lithium battery Made in USA (Sarasota, Florida)What's more these batteries don’t self-discharge, so if the battery is disconnected (no draw or via power disconnect switch), they can sit for over a year and still have over 13 volts to start the vehicle. Over a decade of use in street and race vehicles, as well as being used by more professional race teams, car builders and race series globally than any other lithium battery on the market!!
| BATTERY | BCI GROUP | LENGTH | WIDTH | HEIGHT | WEIGHT | POLARITY |
| i34S | 34 | 10.87" / 276mm | 6.9" / 173mm | 7.7" / 195mm | 18.9lbs / 8.57KG | LEFT SIDE +VE |
| VOLTAGE | FULL VOLTAGE CHARGE | PULSE CRANKING AMPS (PCA) | AMP HOURS (AH) | AMP HOURS (LAH)* | LIFE CYCLE (10% DOD) |
| 12 | 13.8 | 2665 | 60 | 180 | 5000+ |
* Lithium Amp/Hour, Lead Acid Equivalent
Braille Intensity lithium batteries come in common Group 34, 31 and 65 sizes. Direct drop in upgrade that is 100% compatible with ALL standard charging systems and can also be used in race cars with a 'total loss' (no alternator) setup. A lithium charger is required to keep batteries charged on vehicles with a parasitic draw (computer, alarm, etc.) but with no draw, Braille lithium batteries can sit for a year and still be at 90% state of charge. Braille is the only American Made 'Race Grade' lithium battery on the market used by more OEM factory and purpose built race cars, professional race series and also spec lithium battery in several cases around the world!
With an annual failure rate of less than 1/2 of 1% (those caused by abuse, improper maintenance, etc.), you can have the most reliable lithium battery on the market with over a decade of actual use on race and street cars for any vehicle you have!! There is a difference between the other 'consumer grade' lithium batteries with a bunch of 'bells and whistles' that don't match up to the performance and reliability of Braille 'race grade' batteries....our pedigree, racing history and customers speaks for itself!! Call Raceparts USA with any questions you may have as to which battery is right for your vehicle based on goals, usage, goals, etc.!

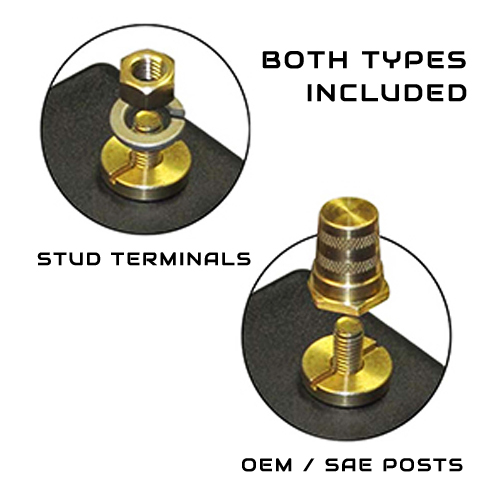

Braille Battery Terminal Details
These batteries come with these adaptable battery terminals, they allow you to connect the battery using your vehicles OEM terminal clamps on the SAE type posts provided, perfect to avoid modifying your cars wiring loom! But they can also be easily unscrewed to convert the battery to allow attachment via a ring type termination, which can be attached firmly into place as desired. The second method is ideal for those who have modified their OEM loom or have perhaps created a custom wiring solution for their machine.
